Elann Drive & Automation is an Indian deep-technology company developing advanced industrial drivetrain solutions. With over 12 years of experience, a team of 60+ top engineers and 58,000 sq. ft. of working space, we engineer high-torque planetary gearboxes, IE5 PMSM motors and intelligent drive-control systems.
Get a free quote

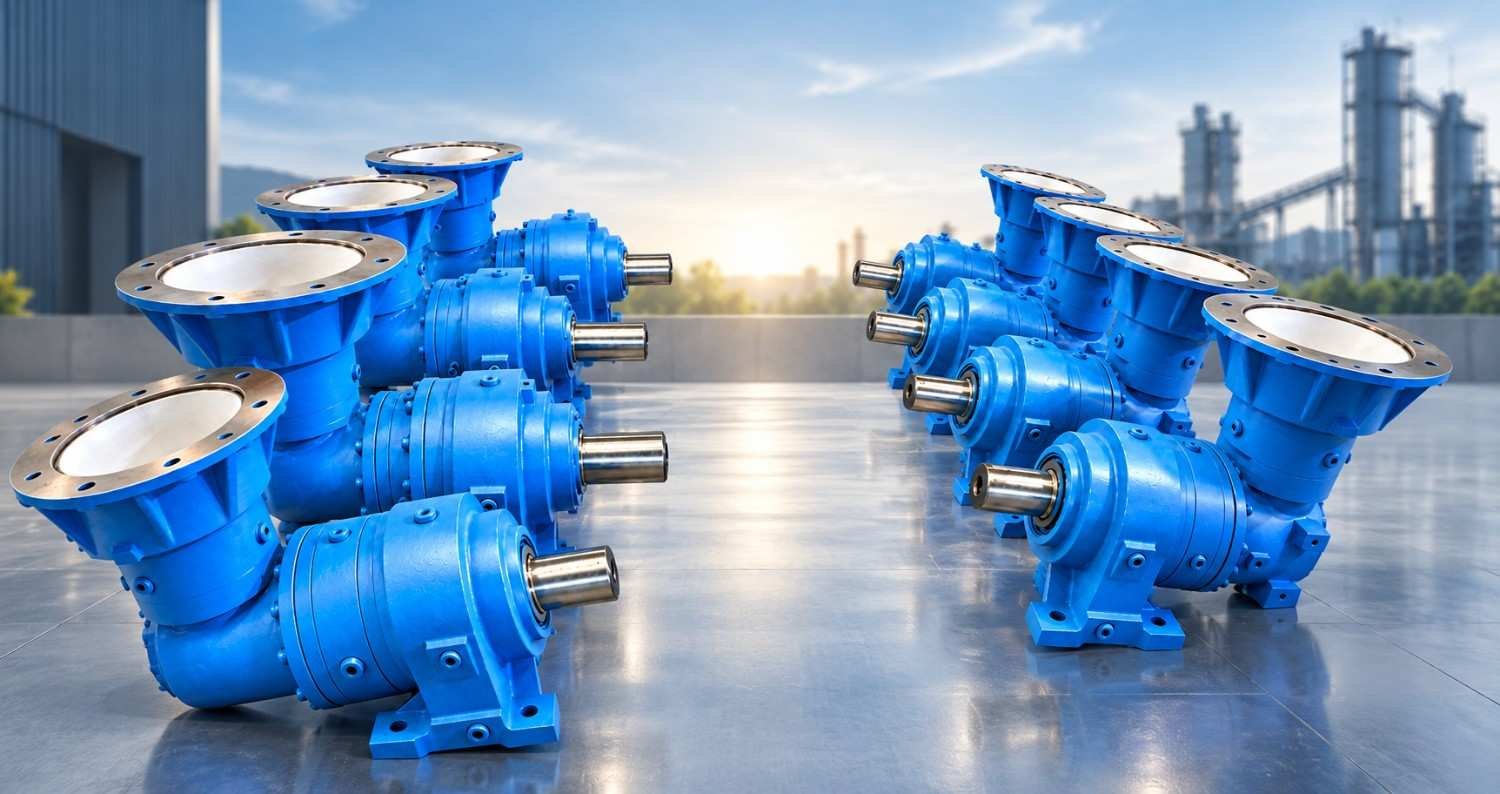

CPTorque Pro
CPTorque Pro
PLANETARY GEARBOX SERIES
12
Sizes
900 – 47,000
Nm TORQUE RANGE
A compact and high-performance planetary gearbox series designed for a wide range of industrial applications. Engineered for reliability, high torque density and long service life.
WHY CPTORQUE PRO
Key Features
Compact Design
High torque density in a compact footprint — ideal where space is limited without compromising on power output.
900 – 47,000 Nm Torque
Wide torque range across 12 sizes ensures the right gearbox for every application — from light automation to heavy industrial drives.
Long Service Life
Precision-hardened gears and robust housing engineered for extended operational life even in demanding environments.
Planetary Gear System
Multi-planet gear arrangement delivers uniform load distribution, smooth operation and high efficiency across all speeds.
Wide Industry Use
Suitable for conveyors, mixers, agitators, cranes, extruders and other heavy-duty industrial machinery.
Easy Maintenance
Modular construction allows quick servicing and minimal downtime, reducing total cost of ownership.
TECHNICAL DATA
Technical Specifications
| Parameter | Value / Range |
|---|---|
| Number of Sizes | 12 |
| Torque Range | 900 – 47,000 Nm |
| Gear Stages | 2 / 3 / 4 Stage Options |
| Gear Ratio | Up to 4000 : 1 |
| Input Speed (max) | 3000 RPM |
| Efficiency | Up to 98% per stage |
| Operating Temperature | -20°C to +80°C |
| Lubrication | Splash / Forced Oil Lubrication |
| Mounting | Foot / Flange / Shaft Mounted |
