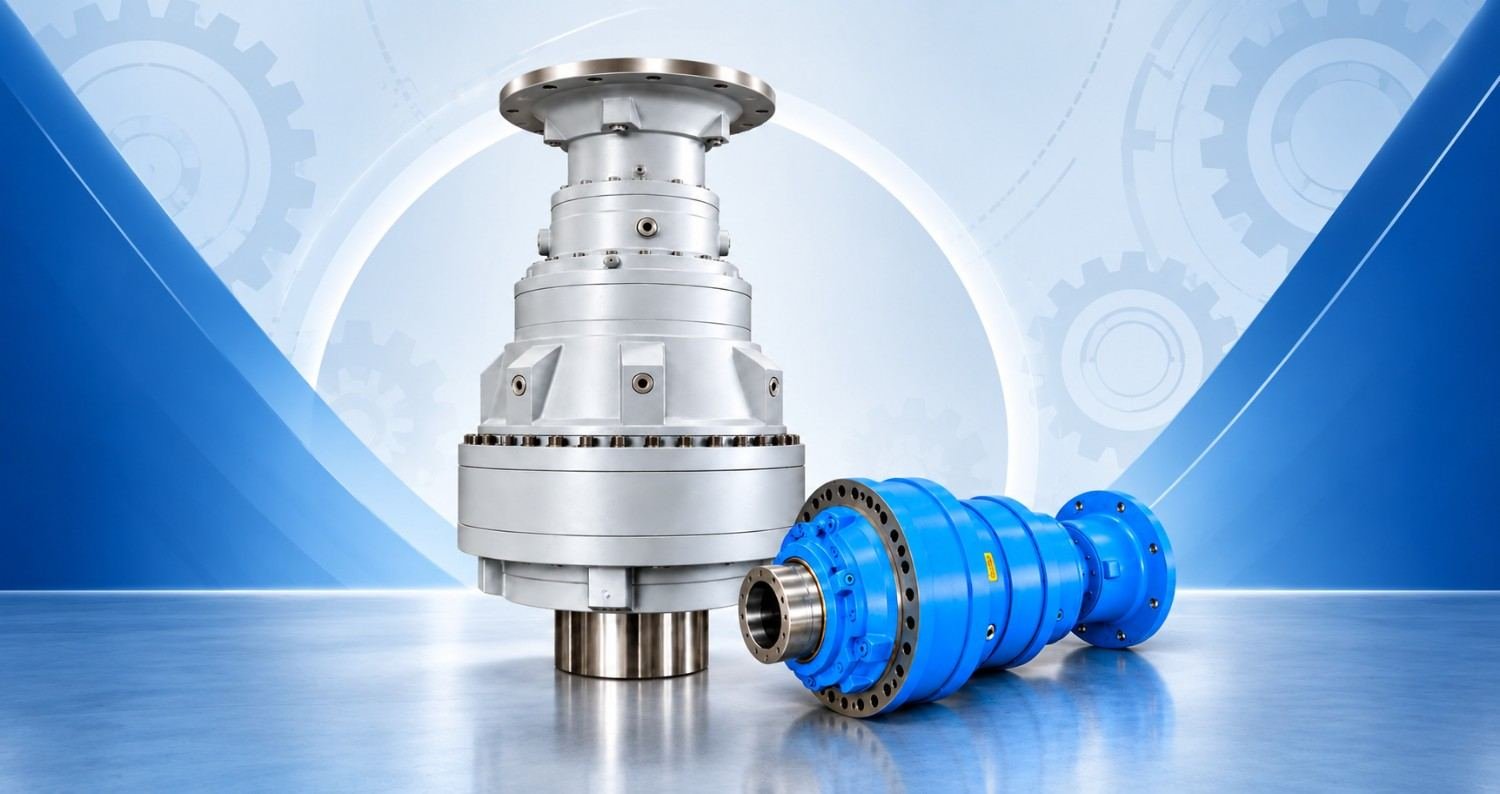

CPTorque Pro Large
CPTorque Pro Large
PLANETARY GEARBOX SERIES
10
Sizes
34,000 – 675,000
Nm TORQUE RANGE
Built for heavy-duty applications, this series delivers extremely high torque, rugged construction and superior reliability for demanding industries.
WHY CPTORQUE PRO LARGE
Key Features
Extreme Torque Capacity
Delivers up to 675,000 Nm of torque — engineered for the most demanding heavy-duty industrial drive systems.
Rugged Construction
Heavy-duty cast housing with reinforced gear sets built to withstand extreme loads, shock and continuous operation.
Superior Reliability
Engineered for maximum uptime in critical applications — robust design minimises maintenance and unexpected failures.
Planetary Gear System
Multi-planet load sharing delivers uniform force distribution, high efficiency and smooth performance at all torque levels.
Heavy Industry Ready
Ideal for mining, steel plants, cement mills, marine drives and other high-load industrial environments.
10 Size Range
Available in 10 sizes covering 34,000 to 675,000 Nm — ensuring the right match for every large-scale application.
TECHNICAL DATA
Technical Specifications
| Parameter | Value / Range |
|---|---|
| Number of Sizes | 10 |
| Torque Range | 34,000 – 675,000 Nm |
| Gear Stages | 2 / 3 / 4 Stage Options |
| Gear Ratio | Up to 5000 : 1 |
| Input Speed (max) | 1500 RPM |
| Efficiency | Up to 98% per stage |
| Operating Temperature | -20°C to +80°C |
| Lubrication | Forced Oil / Pressure Circulation |
| Mounting | Foot / Flange / Torque Arm Mounted |
| Output Configuration | Solid Shaft / Hollow Shaft / Shrink Disc |
WHERE WE SERVE
Typical Applications
Mining & Quarrying
Steel & Metal Plants
Cement Mills
Marine Drives
Cranes & Hoists
Waste & Recycling
Water Treatment
Power Generation
